# XIM Matrix Guide

There are 2 ways to connect gamepad to Xim Matrix: Wired and Wireless

<figure><img src="https://3822774255-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FOFta9wUfh5yxL98PENBK%2Fuploads%2FhEiZB8PCqkAQnGT42DW1%2Fmatrixmakcu.avif?alt=media&#x26;token=1f1933f6-23ce-4f0a-8207-0483ed0c5199" alt=""><figcaption></figcaption></figure>

## Wired Connection

* Connection-Connect the USB-C to the main pc as the middle image from above.
* Connect Controller to the right side Xim port.
* Connect the MAKCU USB to the USB port NEXT to the USB-C as shown on the picture below:



<figure><img src="https://3822774255-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FOFta9wUfh5yxL98PENBK%2Fuploads%2FLoLSh2vCsIivHaqZHkix%2FXim%20Matrix%20Guide%20(Controller%20only).pdf-image-001.png?alt=media&#x26;token=2805887e-054f-4468-ae33-796fcfba0a3d" alt=""><figcaption></figcaption></figure>



## Wireless Connection

connect the Xim Matrix only to Main PC according to the picture below and pair your gamepad.&#x20;

When pairing, you will need to long-press the XIM MATRIX button (about 2 seconds)

<div align="left"><figure><img src="https://3822774255-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FOFta9wUfh5yxL98PENBK%2Fuploads%2FFHIKhExt2aTtkJn1kMR8%2Fxim%201112.png?alt=media&#x26;token=679a301b-70b1-405a-9b43-677cc1932511" alt=""><figcaption></figcaption></figure></div>

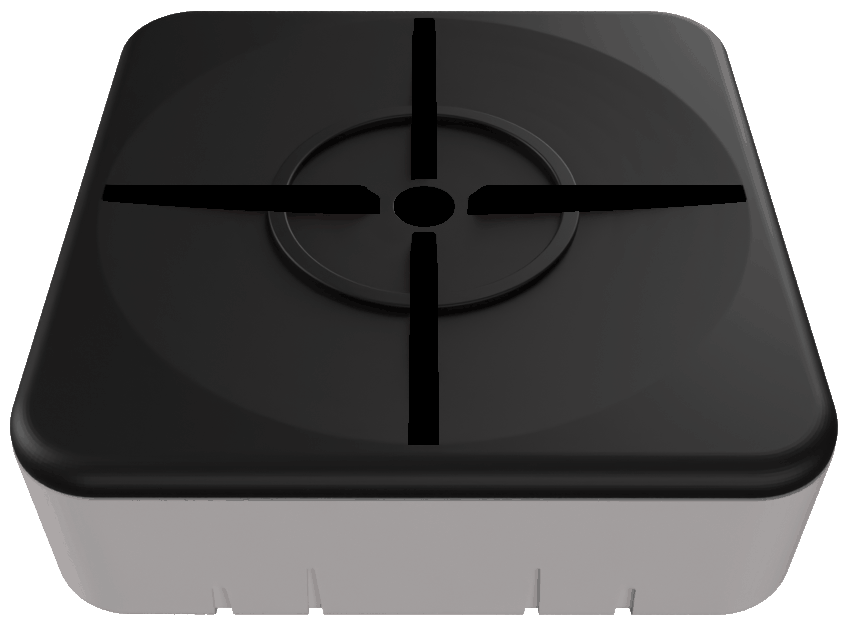

Until it starts blinking blue. At that point, you can then pair your gamepad by activating pairing mode.

<div align="left"><figure><img src="https://3822774255-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FOFta9wUfh5yxL98PENBK%2Fuploads%2F888v1XbeX8LKF1rEOZB8%2Fd538b7_933a8b51095946f9adb8ea5f1bc3bd75~mv2.gif?alt=media&#x26;token=1beeda21-f255-4b35-a833-23718e77ad1d" alt="" width="375"><figcaption></figcaption></figure></div>



## Pair Xbox Controllers&#x20;

<div align="left" data-full-width="false"><figure><img src="https://3822774255-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FOFta9wUfh5yxL98PENBK%2Fuploads%2F6WgRIiP5H1zgxRfPHc32%2Fd538b7_6a9f1cb3286347e1ab9e63dcda5a9e1b~mv2.avif?alt=media&#x26;token=d1867856-efd8-4770-91eb-3065a7d7d5d7" alt=""><figcaption></figcaption></figure></div>

Xbox controllers with bluetooth support (such as the Elite 2, Series, and One).

* Turn on controller
* Press and hold the sync button until the guide button blinks quickly

## Pair PS4 & PS5 Controllers

\


<div align="left"><figure><img src="https://3822774255-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FOFta9wUfh5yxL98PENBK%2Fuploads%2FAHrUnBTxnn78NpEicyfb%2Fd538b7_98197ad90bd047b591dcf6543fa4b291~mv2.avif?alt=media&#x26;token=6871c81e-c911-4e29-9cbf-735b45616822" alt=""><figcaption></figcaption></figure></div>

DualSense, DualSense Edge and DualShock 4 controllers.

* Start with controller off
* Press and hold the share button and then press and hold the PS button
* Do not release until controller starts blinking rapidly



## Xim Setup

1.  Install  XIMMATRIXManager-PC from[ here](https://xim.tech/support/downloads/) on your Main PC.

    If the program prompts you to download an update, do it

<div align="left"><figure><img src="https://3822774255-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FOFta9wUfh5yxL98PENBK%2Fuploads%2Fuv9TZgnjwFiAOErVI47d%2Fd538b7_ffaba3b3a22540a9a54cde6d5a80fec2~mv2.avif?alt=media&#x26;token=4f48a879-bc2f-4055-b56f-1a1738aa4db6" alt=""><figcaption></figcaption></figure></div>

3. To connect Xim Matrix to your PC for the first time, click on the button indicated in the screenshot below.

<div align="left"><figure><img src="https://3822774255-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FOFta9wUfh5yxL98PENBK%2Fuploads%2FCHbb1bQaImn7MOJDjwfv%2F2024-07-14_13-28-01.avif?alt=media&#x26;token=cdf650f3-70eb-4073-8564-50b32993d1c9" alt=""><figcaption></figcaption></figure></div>

4. Create a new Config by pressing the vertical "..." on the top right and selecting New Config:

<div align="left"><figure><img src="https://3822774255-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FOFta9wUfh5yxL98PENBK%2Fuploads%2FyVfgQrZiNEYc5ZVBehXd%2Fxim%20cfg.avif?alt=media&#x26;token=703ca819-51c7-4db4-a478-230ca6b7b521" alt=""><figcaption></figcaption></figure></div>

5. Select the game you are playing and platform PC

<div align="left"><figure><img src="https://3822774255-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FOFta9wUfh5yxL98PENBK%2Fuploads%2FUUnF9d2QAlbXPKaIcIcZ%2F2024-07-14_13-37-42.avif?alt=media&#x26;token=3abd5b1a-baa1-49fd-9acb-e2c7235b83a8" alt=""><figcaption></figcaption></figure></div>

6.  Select Gamepad as the Input device and Mouse and Keyboard as the Output device​

    And click "NEW" button

<div align="left"><figure><img src="https://3822774255-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FOFta9wUfh5yxL98PENBK%2Fuploads%2Fk8hO1NJwZy3xW1x8nMZ9%2F2024-07-14_13-40-04.avif?alt=media&#x26;token=7693d856-9082-4bed-a1e3-b778f3ba2bfc" alt=""><figcaption></figcaption></figure></div>

7. Connect your [Makcu Board]() according to our guides.

<div align="left"><figure><img src="https://3822774255-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FOFta9wUfh5yxL98PENBK%2Fuploads%2FzEi2XUnTV382v6qYSeYo%2Fxim%20makcu.png?alt=media&#x26;token=18e1a863-6cc9-4ebd-948b-5928dfa66cae" alt=""><figcaption><p>made by joxx &#x3C;3</p></figcaption></figure></div>

8. Launch a game you are going to play, make sure that the output devices in the game settings are be mouse and keyboard

<div align="left"><figure><img src="https://3822774255-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FOFta9wUfh5yxL98PENBK%2Fuploads%2F7I0W7dXP5XRng0oLW7ya%2F2024-07-14_14-59-54.avif?alt=media&#x26;token=59fd4c82-4d33-4d4f-9155-81510c48e194" alt=""><figcaption></figcaption></figure></div>
